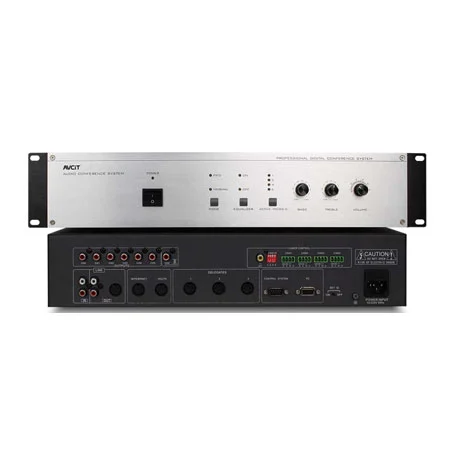

AVCiT Conference Controller-C3101

Name: Conference Controller-C3101
Brand: Guangdong AVCiT Technology Holding Co., Ltd.
Rating: 4.4 (4 reviews)

AVCIT C3101 is a high performance conference console for speech and voting, With multiple modes for number of speakers and speech modes, with equalizer for tone adjusting, feature of howling suppression, and automatic camera tracking and signal switching function, which can works with camera at variety of angles. Open control protocol, works with AVCIT’s central

Controller and iOS android devices

Request A Solution

Specification

Highlights

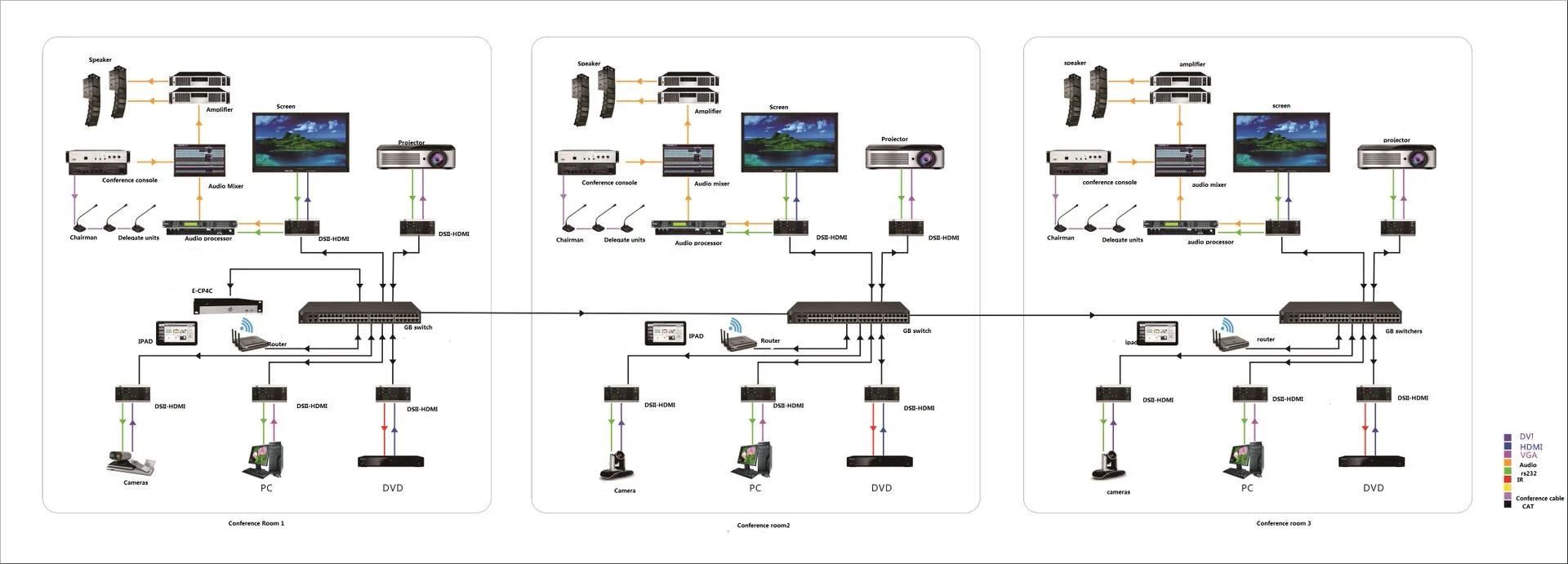

Schematic

Specification of Conference Controller-C3101

Power Supply:100-240V switching power supply

Static power consumption:10W

Maximum Power: 350W

Output power:《110W/24V

Audio ouput:100Ω；unbalanced

Microphone input:100KΩ/-60dB/unbalanced

Frequency response:60-8kHZ

SNR:>80dB

Harmonic distortion:<0.5%

Over Carrier Distortion<1%

Crosstalk attenucation(1kHz):>50dB

Dimensions(mm):430L*275W*90H

Weight:6.9KGS

Highlights of Conference Controller-C3101

Connect up to 120speech units for each C3102, through the expansion console, maximum 960 units speech unit are available;

With audio input interface, for external audio signal, such as background music;

With multiple audio channels output, can be connected to PA system for the speaker to amplify the output can also be connected to the recording system, remote conferencing systems;

Available to define No. of current Speaker, with 1/2/4/6 switching for maximum number of speaker, Chairman unit is not involved;

FIFO function: First in, first out, with 1/2/4/6 switching for maximum number of speakers, Chairman unit is not involved;

With voting and data management features;

Automatic camera tracking and signal switching function, which can works with camera at variety of angles;

Open control protocol, works with AVCIT’s central Controller and iOS/android devices;

Available to be coupled with the phone teleconference;

Enclosure is made of metal material, possess the ability of antistatic 8000V;

Wide voltage power supply.
