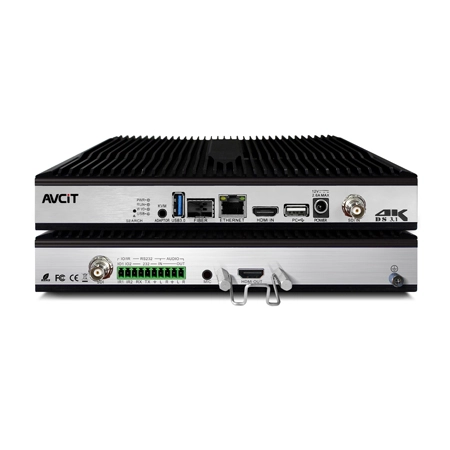

AVCiT 4K60 4:4:4 KVM Encoder - HDMI + SDI

AVCIT 4K60 4:4:4 KVM Encoder-SDI+HDMI powered by ASE (Patented AVCiT-Screen-Encoder)technologies, designed to transmit 4K@60 4:4:4 video + KVM over 4-20 Mbps bandwidth with low latency less to 16.7ms. Inheriting AVCIT’s extraordinary AVOIP architecture, DSX Series is with fully distributed and decentralized architecture, No standalone KVM server is required, whether for intuitive video matrix switching or dynamic KVM over IP solutions, a truly all-in-one Command Center Solutions with no single point failure.
  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation center(JOC), Airport Operation Center(AOC), Traffic Operation Center(TOC), Board Room, Meeting Room etc.

  • Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise etc.

Specification of 4K60 4:4:4 KVM Encoder - HDMI + SDI

Video Input: HDMI 2.0 x 1, SDI x 1

Video Output: HDMI loop x 1, SDI loop x 1

USB3.0: 1

USB2.0: 1

RS232: 1

KVM Adapter: 1(Certified High Secure HID transmission)

IR & I/O: Totally 2 Configurable

Audio in/out: 1 IN +1 OUT Phoenix

MIC: 3.5mm jack x 1

Search(Reset): 1

Ethernet: IEEE 802.1ab 1000BASE-T

SFP(Optional): SFP Duplex LC Connectors

Power: IEEE 802.3at (30W), PSU-12V2.6A

Compression: ASE(Patented AVCiT-Screen-Encoder)/H.265/H.264

Resolutions: Up to 4096x2160@60 4:4:4

Protocol: RTSP

Bit Rates: Configurable 4-20Mbps per stream

Image Protocol: HDMI 2.0

Latency: Less to 16.7ms

Consumption: 30W


Highlights of 4K60 4:4:4 KVM Encoder - HDMI + SDI

Highlights of 4K60 4:4:4 KVM Encoder - HDMI + SDI

Transmit 4K@60 4:4:4 video over configurable bandwidth of 4-20 Mbps with low mouse latency less to 16.7 ms

Highlights of 4K60 4:4:4 KVM Encoder - HDMI + SDI

Distributed computing technology, no need additional server to process signal


Highlights of 4K60 4:4:4 KVM Encoder - HDMI + SDI

Redundant power supply by both PSU and POE available and network redundncy by RJ45 + SFP


Highlights of 4K60 4:4:4 KVM Encoder - HDMI + SDI

Secure Data transmission, optional transparent USB port

Schematic of Combining as Video Wall Controller & KVM Over IP System

Schematic of Combining as Video Wall Controller & KVM Over IP System zoom in
Schematic of Combining as Video Wall Controller & KVM Over IP System

Demo Video about 4K60 4:4:4 KVM Encoder - HDMI + SDI

Demo Video about 4K60 4:4:4 KVM Encoder - HDMI + SDI
