4k60-4-4-4-kvm-decoder-hdmi-sdi

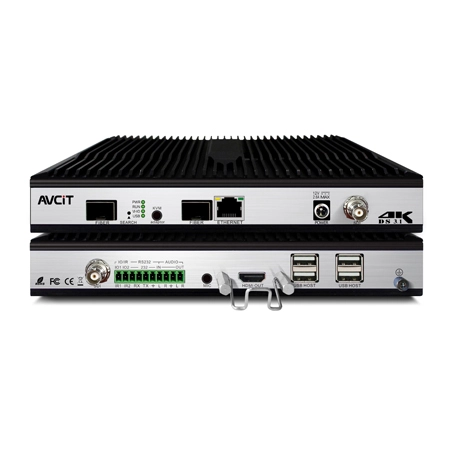

AVCiT 4K60 4:4:4 KVM Decoder - HDMI + SDI

AVCIT 4K60 4:4:4 KVM Decoder-SDI+HDMI powered by ASE (Patented AVCiT-Screen-Encoder)technologies, designed to transmit 4K@60 4:4:4 video + KVM over 4-20 Mbps bandwidth with low latency less to 16.7ms. Inheriting AVCIT’s extraordinary AVOIP architecture, DSX Series is with fully distributed and decentralized architecture, No standalone KVM server is required, whether for intuitive video matrix switching or dynamic KVM over IP solutions, a truly all-in-one Command Center Solutions with no single point failure.
  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation center(JOC), Airport Operation Center(AOC), Traffic Operation Center(TOC), Board Room, Meeting Room etc.

  • Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise etc.


Specification of 4K60 4:4:4 KVM Decoder - HDMI + SDI

Video Output: HDMI 2.0 x 1. SDI x 1

USB2.0: 4

RS232: 1

KVM Adapter: 1(Certified High Secure HID transmission)

IR & I/O: Totally 2 Configurable

Audio in/out: 1 IN +1 OUT Phoenix

MIC: 3.5mm jack x 1

Search(Reset): 1

Ethernet: IEEE 802.1ab 1000BASE-T

SFP(Optional): SFP Duplex LC Connectors

Power: IEEE 802.3at (30W),  PSU-12V2.6A

Compression: ASE(Patented AVCiT-Screen-Encoder)/H.265/H.264

Resolutions: Up to 4096x2160@60 4:4:4

Protocol: RTSP

Image Protocol: HDMI 2.0

Latency: Less to 16.7ms

Consumption: 30W


Highlights of 4K60 4:4:4 KVM Decoder - HDMI + SDI

Highlights of 4K60 4:4:4 KVM Decoder - HDMI + SDI

In-built OSD interface to view and control the source PC, no need additional software

Available to decode and control multiple source from different KVM encoders at same time

Highlights of 4K60 4:4:4 KVM Decoder - HDMI + SDI

Compatible with both wired and wireless keyboard mouse or interative monitor with mult-touch feautre



Highlights of 4K60 4:4:4 KVM Decoder - HDMI + SDI

Two-way audio and USB camera transmission for making video call between operators


Highlights of 4K60 4:4:4 KVM Decoder - HDMI + SDI

Distributed computing technology, no need additional server to process signal

Redundant power supply by both PSU and POE available

Schematic of Combining as Video Wall Controller & KVM Over IP System

Schematic of Combining as Video Wall Controller & KVM Over IP System zoom in
Schematic of Combining as Video Wall Controller & KVM Over IP System

Demo Video about 4K60 4:4:4 KVM Decoder - HDMI + SDI

Demo Video about 4K60 4:4:4 KVM Decoder - HDMI + SDI
