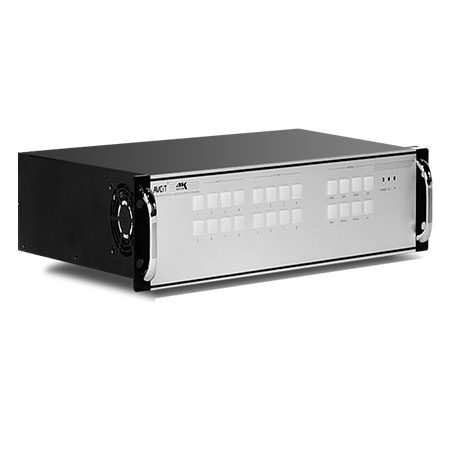

AVCiT 4K Video Matrix Switcher - 72x72

Name: 4K Video Matrix Switcher - 72x72
Brand: Guangdong AVCiT Technology Holding Co., Ltd.
Rating: 4.4 (4 reviews)

AVCIT MIX Series 4K Modular Matrix switcher is designed for routing multiple audio and video signals to multiple displays and video walls, which is mainly used in large command centres, government video conferencing, large screen display engineering, dispatch centres etc.

There are 5 configurable matrix chassis/enclosures, HD7272-4K is the enclosure for Video Matrix Switcher - 72x72

Request A Solution

Specification

Highlights

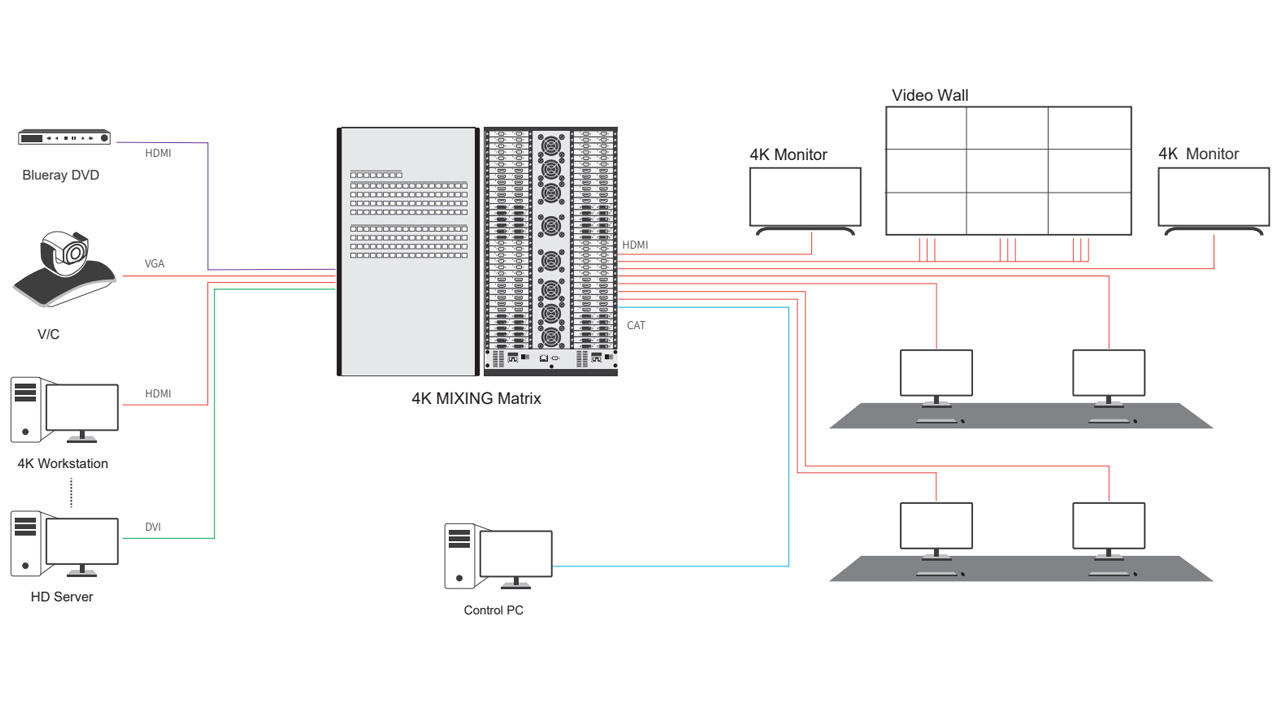

Schematic

Video

Specification of 4K Video Matrix Switcher - 72x72

Image Processing	Full Advanced FPGA architecture
Bandwidth	up to 6 Gbps per channel
Resolution	Support 3840x2160@60 and downward compatibility
Video format	HDMI, DVI, VGA, SDI, AV, IP, H.265/H.264, HD-BaseT
Maximum presets	18
Power-down memory	Yes
Power-off site protection	Yes
Channel	max. 72 channels IN & 72 channels OUT
Communication Port	RS232 x1, RJ45x1
Protocol	HDMI 2.0 (part), HDCP, DVI 1.0, RS232, UDP
Transmission Distance	120m over CAT6, 20km over fiber optic
Power Supply	redundancy110-220V PSU,
Dimension	480x353x842mm, 19" rack-mounted
