Av over Ip Solutions 4K KVM Receiver-HDMI

AVCiT 4K KVM Receiver-HDMI

4K KVM Receiver (HDMI) is designed with two standalone channels to receive UHD Video + Audio + USB-HID + RS232/485 + IR over fiber optic up to 20 km, with original image quality and nearly zero latency. It can be configured as a receiver of all-in-one Visualized & Distributed Fiber KVM and Video Wall Control System or a KVM Extender or a KVM Matrix.
  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation center(JOC), Airport Operation Center(AOC), Traffic Operation Center(TOC), Board Room, Meeting Room, etc.

  • Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise, etc.

Specification of 4K KVM Receiver-HDMI

Video PortHDMI OUT x2
Audio PortMIC x2
Control PortRS232 x2, RS485 x2, IR/IO x4, USB2.0 x2
Communication PortFiber SFP x4
Resolution3840x2160 4:4:4 and downward compatibility
Image ProcessingAdvanced FPGA
ProtocolHDCP, HDMI2.0, HDMI 1.4 compatible with DVI 1.0
Bandwidthup to 12 GB per channel
Transmission Distanceup to 20 km over fiber optic
Audio Controlaudio matrix switching, audio mixing, embed and de-embed feature.
Power Supply12V 2.6A Adapter, power redundancy available


Highlights of 4K KVM Receiver-HDMI

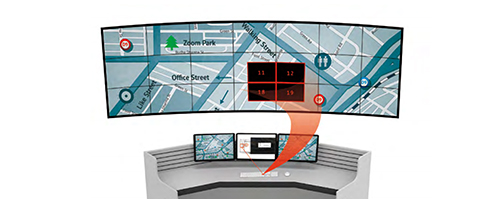

Highlights of 4K KVM Receiver-HDMI

In-built OSD interface to get access and control the source PC, no need for additional software

Highlights of 4K KVM Receiver-HDMI

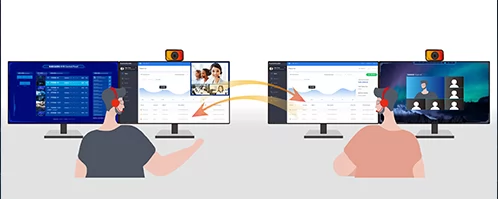

Bi-directional audio transmission for making voice call between operators

Highlights of 4K KVM Receiver-HDMI

Distributed computing technology, no need for additional server to process signal

Highlights of 4K KVM Receiver-HDMI

GET&PUSH features by Hotkey to securely control the PC

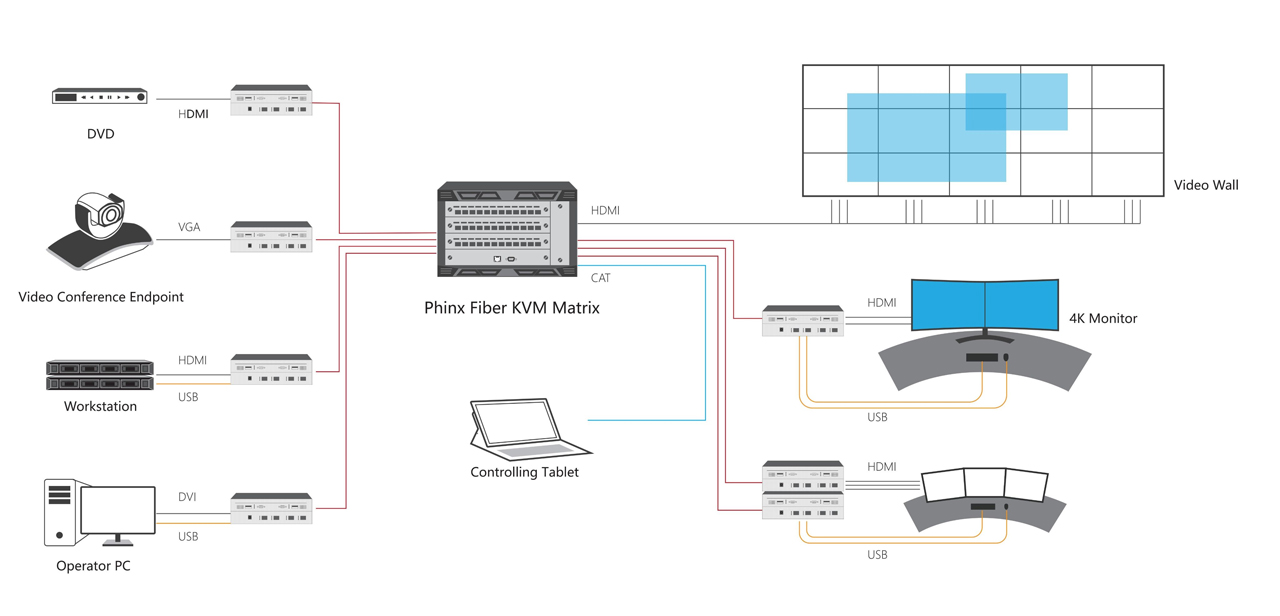

Schematic of Fiber KVM Matrix

Schematic of Fiber KVM Matrix zoom in
Schematic of Fiber KVM Matrix

Demo Video about Fiber KVM Matrix

Demo Video about Fiber KVM Matrix
Inquiry Now
We're here to help with the ip video wall controller solutions for your business

Document of 4K KVM Receiver-HDMI
