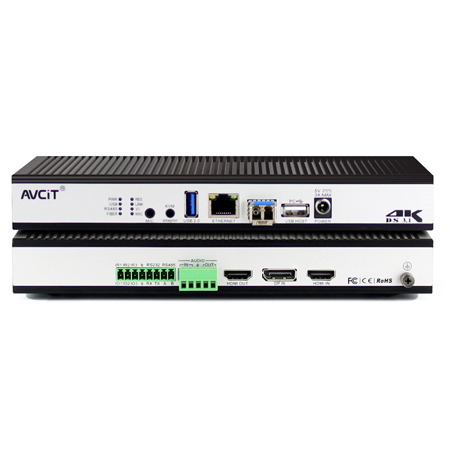

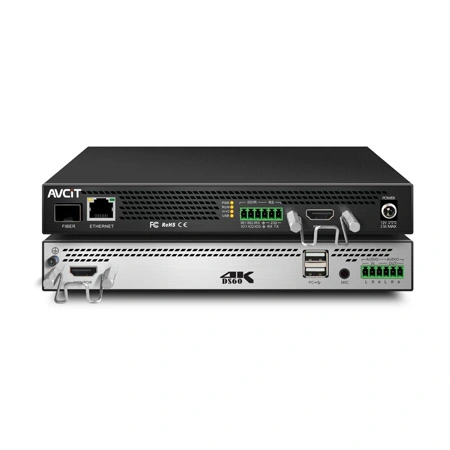

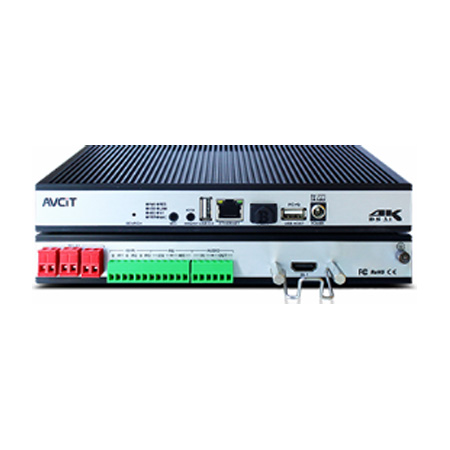

AVCiT 4K KVM Encoder - HDMI

The H.265 based DSIII 4K KVM Encoder (HDMI) is designed to transmit UHD video + USB-HID + RS232/485 + IR over standard 1GB IT network, with low latency and high image quality. It would be configured as a KVM encoder to combine as an integrated and visualized Video Wall Controller & KVM over IP System.
  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation center(JOC), Airport Operation Center(AOC), Traffic Operation Center(TOC), Board Room, Meeting Room etc.

  • Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise etc.


Specification of 4K KVM Encoder - HDMI

Video Port

HDMI INx1

USB Port

USB Host x1, USB 3.0 x1

Audio Port

AUDIO IN x1, AUDIO OUTx1

Control Port

RS232 x1, RS485 x1, IO/IR x3

Network Port

RJ45x1, Fiber Optic x1

Resolution

Support 3840x2160p and downward compatibility

Protocol

H.265/H.264, RTSP, ONVIF, HDCP and HDMI 2.0 compatible with DVI 1.0

Bandwidth

4~20 Mpbs configurable for per streaming

Transmission Distance

90 meters over CAT6 cable or 10 km over fiber

Audio Control

audio matrix switching, audio mixing, embed and de-embed feature.

Power Supply

PoE (802.3 AT) or 5V 3A Power Adapter

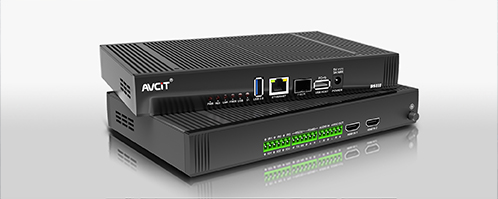

Highlights of 4K KVM Encoder - HDMI

Highlights of 4K KVM Encoder - HDMI

Transmit UHD video in low latency over configurable bandwidth of 4-20 Mbps.


Highlights of 4K KVM Encoder - HDMI

Distributed computing technology, no need additional server to process signal.


Highlights of 4K KVM Encoder - HDMI

Redundant power supply by both PSU and POE available.


Highlights of 4K KVM Encoder - HDMI

Fanless chassis by dedicated heat sink, with Extreme cooling performance.


Schematic of Combining as Video Wall Controller & KVM Over IP System

Schematic of Combining as Video Wall Controller & KVM Over IP System zoom in
Schematic of Combining as Video Wall Controller & KVM Over IP System

Demo Video about 4K KVM over IP

Demo Video about 4K KVM over IP
