AVCiT 4K HDMI Video Decoder

The H.265 based DSII 4K HDMI Decoder is designed to receive UHD video + RS232/485 + IR over standard 1GB IT network, with low latency and high image quality. It would be configured as an video Decoder to combine as an integrated and visualized Video Wall Controller & KVM over IP System.
  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation center(JOC), Airport Operation Center(AOC), Traffic Operation Center(TOC), Board Room, Meeting Room etc.

  • Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise etc.


Specification of 4K HDMI Video Decoder

Video Port

HDMI OUTx1, VGA OUTx1

Audio Port

AUDIO IN x1, AUDIO OUTx1, MIC x1

Control Port

RS232 x1, RS485 x1, IO/IR x4

Network Port

RJ45x1, Fiber Optic x1

Resolution

Support 3840x2160p and downward compatibility

Protocol

H.265/H.264, RTSP, ONVIF, HDCP and HDMI 2.0 compatible with DVI 1.0

Bandwidth

4~20 Mpbs configurable for per streaming

Transmission Distance

90 meters over CAT6 cable or 10 km over fiber

Power Supply

PoE (802.3 AT) or 5V 3A Power Adapter

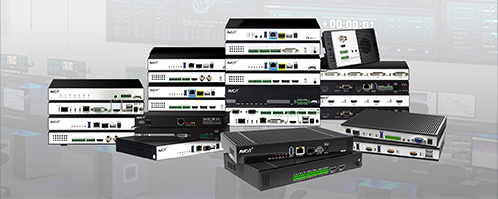

Highlights of 4K HDMI Video Decoder

Highlights of 4K HDMI Video Decoder

Compatible with DSII H.264 Codec, DSII or DSIII 2K h.265 Encoder, Decoder in same system.


Highlights of 4K HDMI Video Decoder

Distributed computing technology, no need additional server to process signal.


Highlights of 4K HDMI Video Decoder

Patented locking kit for HDMI, compatible with most of the HDMI cable, no need for dedicated HDMI connector.


Highlights of 4K HDMI Video Decoder

Redundant power supply by both PSU and POE available.


Schematic of Combining as Video Wall Controller & KVM Over IP System

Schematic of Combining as Video Wall Controller & KVM Over IP System zoom in
Schematic of Combining as Video Wall Controller & KVM Over IP System

Demo Video about 4K Video Wall Controller over IP

Demo Video about 4K Video Wall Controller over IP
