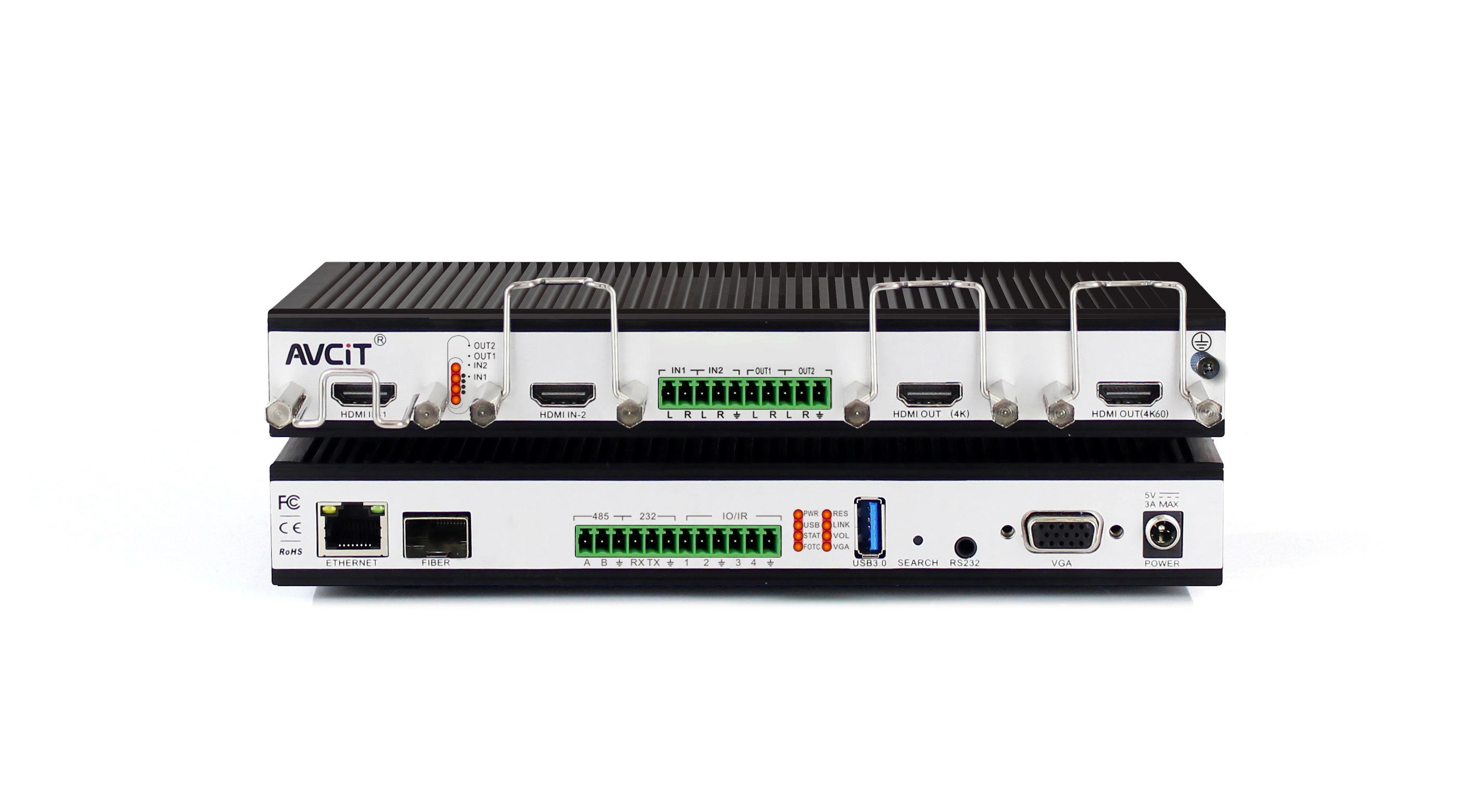

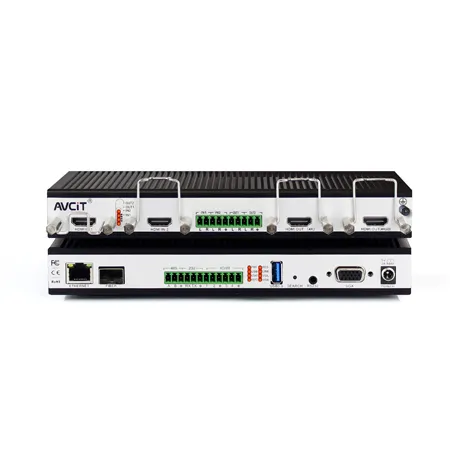

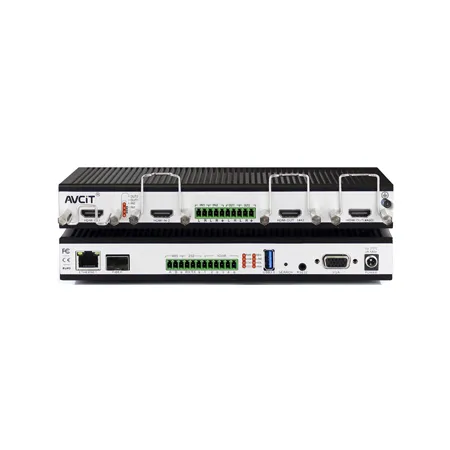

AVCiT 4K HDMI Dual Channel Codec

Name: 4K HDMI Dual Channel Codec
Brand: Guangdong AVCiT Technology Holding Co., Ltd.
Rating: 4.4 (4 reviews)

The H.265 based DSII 4K HDMI Dual Channel Codec is designed to transmit and receive UHD video + RS232/485 + IR over standard 1GB IT network, with low latency and high image quality. It could be configured as a dual channel video encoder or a dual channel video decoder or both dual channel encoder/decoder for the video conference terminal as an integrated and visualized Video Wall Controller & KVM over IP System.

Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation center(JOC), Airport Operation Center(AOC), Traffic Operation Center(TOC), Board Room, Meeting Room etc.
Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise etc.

Request A Solution

Specification

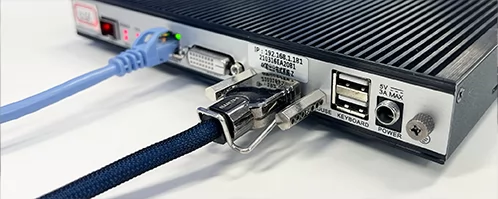

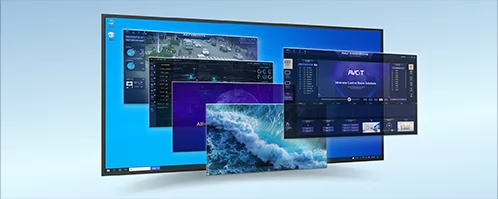

Highlights

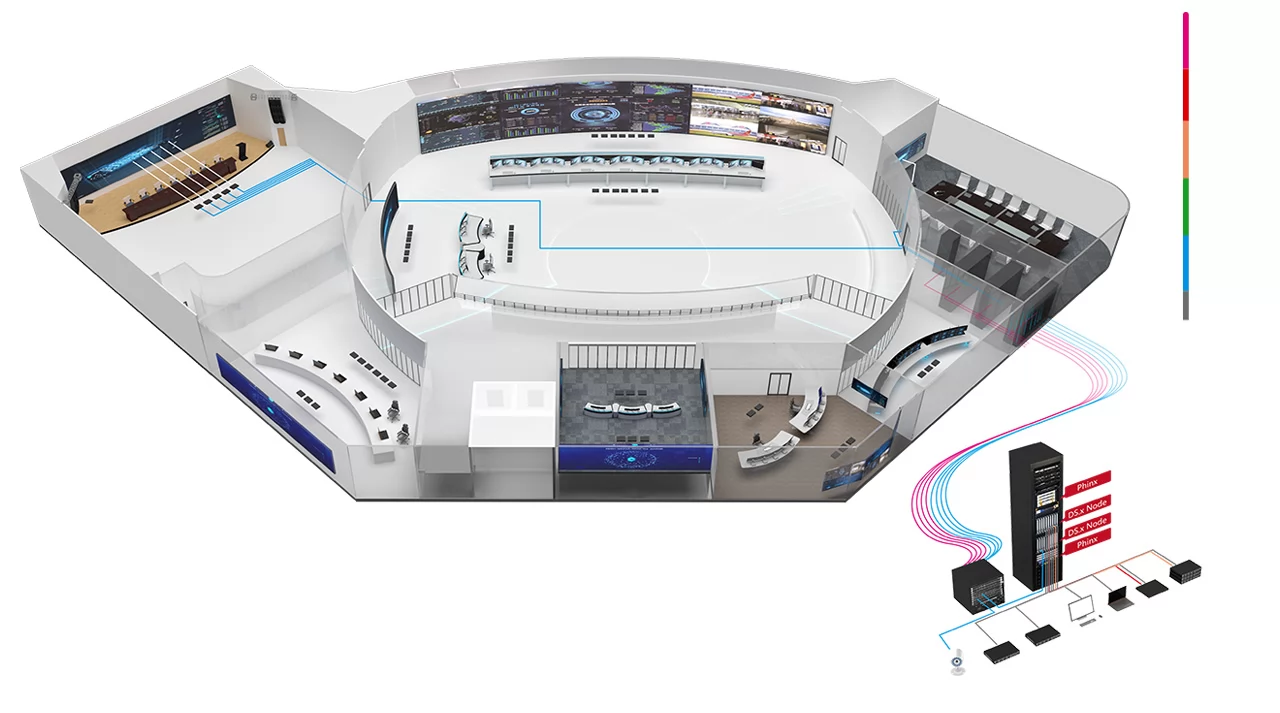

Schematic

Video

Specification of 4K HDMI Dual Channel Codec

Audio Port	AUDIO IN x2, AUDIO OUTx2
Control Port	RS232 x1, RS485 x1, IO/IR x4
Network Port	RJ45x1, Fiber Optic x1
Resolution	Support 3840x2160p and downward compatibility
Protocol	H.265/H.264, RTSP, ONVIF, HDCP and HDMI 2.0
Bandwidth	4~20 Mpbs configurable for per streaming
Transmission Distance	90 meters over CAT6 cable or 10 km over fiber
Audio Control	audio matrix switching, audio mixing, embed and de-embed feature.
Power Supply	PoE (802.3 AT) or 5V 3A Power Adapter
