There are 5 configurable matrix chassis/enclosures, HD3232-2K is the enclosure for Video Matrix Switcher - 32x32
Image Processing | Full Advanced FPGA architecture |
Signal Switching Chip Technology | Telecom level 3-12G |
Backplane interface | ERNI High-speed backplane interface technology |
Bandwidth | up to 3.25 Gbps per channel |
Resolution | Up to 1920x1200@60 4:4:4 RGB, or 4:2:2 YUV |
Video format | HDMI, DVI, VGA, SDI, AV, IP |
Maximum presets | 18 |
Power-down memory | Yes |
Power-off site protection | Yes |
Communication Port | RS232 x1, RJ45x1 |
Protocol | 3D, HDMI 1.4, HDCP, RS232, UDP |

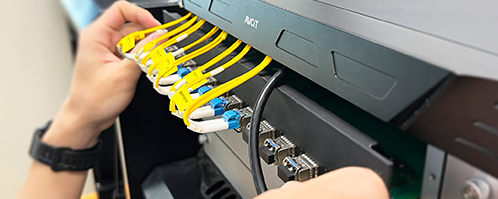

Transmission Distance | 120m over CAT6, 20km over fiber optic |
Power Supply | redundancy 110-220V PSU |
Dimension | 492x273x221mm, 19" rack-mounted |
Channel | max. 32 channels IN & 32 channels OUT |
Modular video matrix architecture, Flexible & Configurable.
Build-in video walls controller functions by optional VWC card.
Seamless switching with no Black screen.

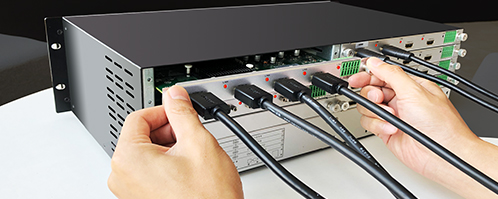

hot-swappable I/O card and PSU
Compatible wth 3rd party controller
