2K Video Wall Decoder (HDMI+DVI)

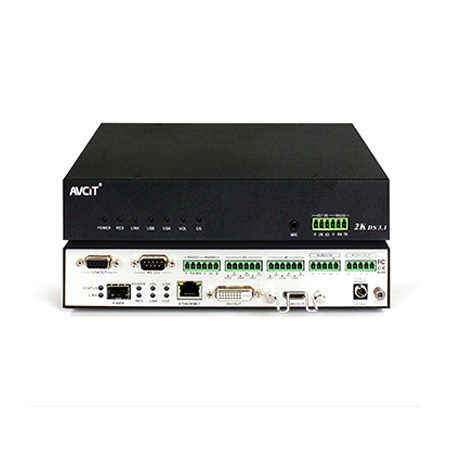

AVCiT 2K Video Wall Decoder (HDMI+DVI)

The H.265 based 2K video wall decoder is designed to decode and synchronize FHD video over standard 1GB IT network, with low latency and high image quality. It could be configured as a video wall decoder for an integrated and visualized Video Wall Controller & KVM over IP System.
  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation center(JOC), Airport Operation Center(AOC), Traffic Operation Center(TOC), Board Room, Meeting Room etc.

  • Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise etc.


Specification of 2K Video Wall Decoder (HDMI+DVI)

Video Port

HDMI OUTx1, DVI OUTx1, VGA OUTx1

Audio Port

AUDIO INx1, AUDIO OUTx1

Control Interface Port

RS232 x1, RS485 x1, IO/IR x3

Resolution

Up to 1920x1080p@60

Protocol

H.265/264, RTSP, HDCP and HDMI 1.4 compatible with DVI 1.0

Bandwidth

4~20 Mbps configurable per streaming

Transmission Distance

90m over CAT6 cable, 10km over fiber

Audio Control

audio matrix switching, audio mixing, embed and de-embed feature.

Power Supply

PoE (802.3 AT) or 5V 3A Power Adapter


Highlights of 2K Video Wall Decoder (HDMI+DVI)

Highlights of 2K Video Wall Decoder (HDMI+DVI)

Distributed computing technology, no need for additional server.


Highlights of 2K Video Wall Decoder (HDMI+DVI)

Multi-view feature, display up to 4 FHD sources by single decoder.


Highlights of 2K Video Wall Decoder (HDMI+DVI)

Plug & play and support hot-swap.


Highlights of 2K Video Wall Decoder (HDMI+DVI)

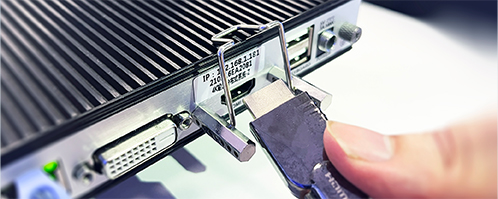

Patented locking kit for HDMI, compatible with most of the HDMI cable, no need for dedicated HDMI connector.


Highlights of 2K Video Wall Decoder (HDMI+DVI)

Redundant power supply by both PSU and POE available.

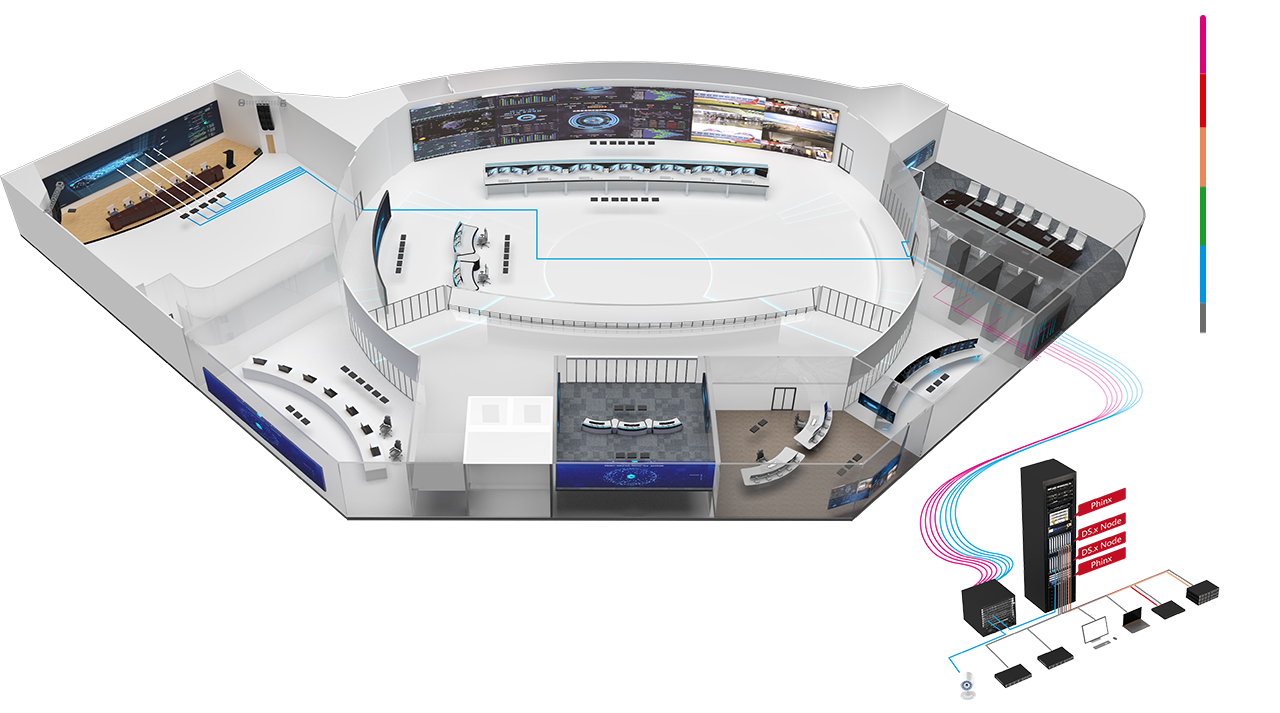

Schematic of Combining as Video Wall Controller & KVM Over IP System

Schematic of Combining as Video Wall Controller & KVM Over IP System zoom in
Schematic of Combining as Video Wall Controller & KVM Over IP System

Demo Video about 2K Video Wall Controller over IP

Demo Video about 2K Video Wall Controller over IP
