Kvm Matrix 2K KVM Receiver-HDMI

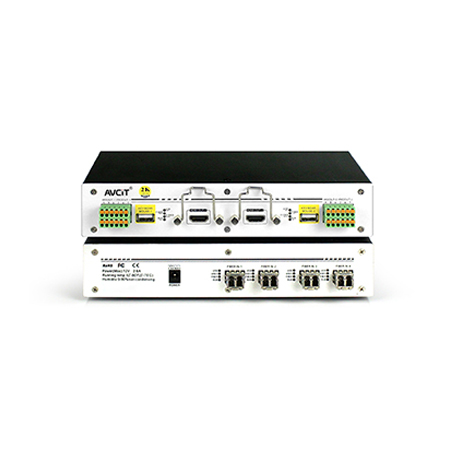

AVCiT 2K KVM Receiver-HDMI

2K KVM Receiver (HDMI) is designed with two standalone channels to receive FHD Video + Audio + USB-HID + RS232/485 + IR over fiber optic up to 20 km, with original image quality and nearly zero latency. It can be configured as a receiver of all-in-one Visualized & Distributed Fiber KVM and Video Wall Control System or a KVM Extender or a KVM Matrix.
  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation center(JOC), Airport Operation Center(AOC), Traffic Operation Center(TOC), Board Room, Meeting Room, etc.

  • Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise, etc.

Specification of 2K KVM Receiver-HDMI

Video PortHDMI OUTx2
Audio PortMIC x2
Control PortRS232 x2, RS485 x2,IR/IO x4,USB2.0 x2
Communication PortFiber SFP x4
Resolution1920x1200 4:4:4 and downward compatibility
Image ProcessingAdvanced FPGA
ProtocolHDCP and HDMI 1.4 compatible with DVI 1.0
Bandwidthup to 12 GB per channel
Transmission Distanceup to 20 km over fiber optic
Audio Controlaudio matrix switching, audio mixing, embed and de-embed feature
Power Supply12V 2.6A Adapter, available to make power redundancy


Highlights of 2K KVM Receiver-HDMI

Highlights of 2K KVM Receiver-HDMI

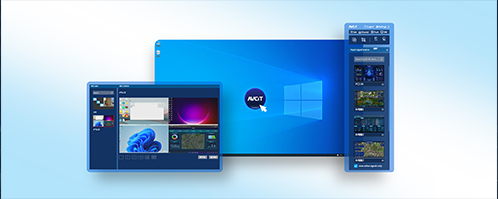

In-built OSD interface to get access and control the source PC, no need for additional software

Highlights of 2K KVM Receiver-HDMI

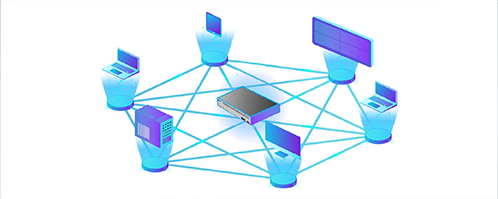

Distributed computing technology, no need for additional server to process signal

Highlights of 2K KVM Receiver-HDMI

GET&PUSH features by Hotkey to securely control the PC

Highlights of 2K KVM Receiver-HDMI

Permission management with Exclusive, View Only and Share

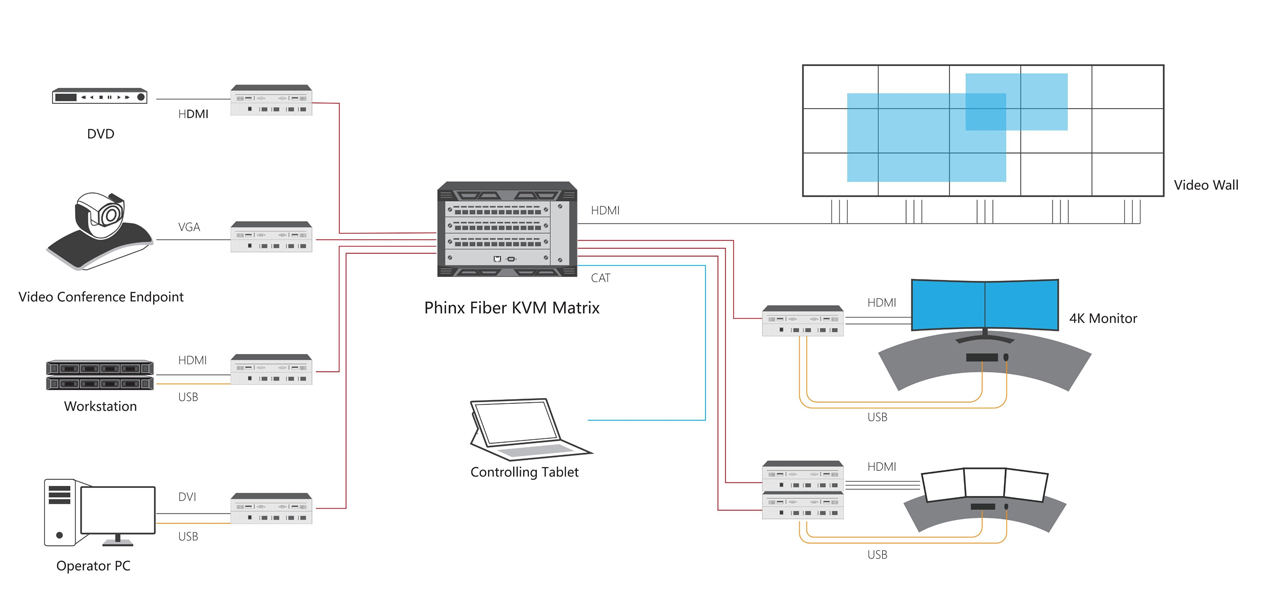

Schematic of Fiber KVM Matrix

Schematic of Fiber KVM Matrix zoom in
Schematic of Fiber KVM Matrix

Demo Video about Fiber KVM Matrix

Demo Video about Fiber KVM Matrix
