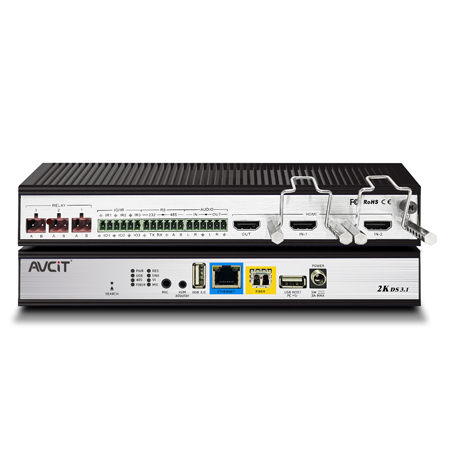

AVCiT 2K KVM Encoder - HDMI

The H.265-based DSIII 2K KVM Encoder (HDMI ) is designed to transmit FHD video + USB-HID + RS232/485 + IR over standard 1GB IT network, with low latency and high image quality. It would be configured as a KVM encoder to combine an integrated and visualized Video Wall Controller & KVM over IP System.
  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation Center(JOC), Airport Operation Center (AOC), Traffic Operation Center(TOC), Board Room, Meeting Room etc.

  • Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise etc.


Specification of 2K KVM Encoder - HDMI

Video Port

HDMI INx2, HDMI LOOP OUTx1(with patented locking kits)

USB Port

USB Host x1, USB 3.0x1

Audio Port

AUDIO IN x1, AUDIO OUTx1, MICx1

Control Port

RS232 x1, RS485 x1, IO/IR x3,Relay x3

Network Port

RJ45x1, Fiber Optic x1

Resolution

Support 1920x1200 ,1920x1080p and downward compatibility

Procotol

H.265/264, RTSP, ONVIF, HDCP and HDMI 1.4B compatible with DVI 1.0

Bandwidth

4~20 Mbps configurable for per video streaming

Transmission Distance

90 meters over CAT6 cable or 10 km over fiber

Audio Control

audio matrix switching, audio mixing, embed and de-embed feature.

Power Supply

PoE (802.3 AT) or 5V 3A Power Adapter(Dual power supply)


Highlights of 2K KVM Encoder - HDMI

Highlights of 2K KVM Encoder - HDMI

Transmit FHD video in low latency over configurable bandwidth of 4-20 Mbps.


Highlights of 2K KVM Encoder - HDMI

Distributed computing technology, no need additional server to process signal.



Highlights of 2K KVM Encoder - HDMI

Redundant power supply by both PSU and POE available.


Highlights of 2K KVM Encoder - HDMI

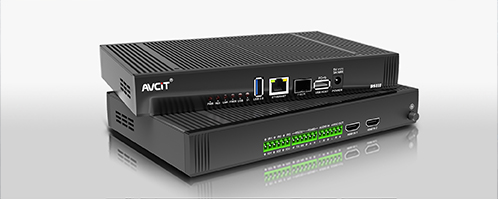

Fanless chassis by dedicated heat sink, with Extreme cooling performance.


Schematic of Combining as Video Wall Controller & KVM Over IP System

Schematic of Combining as Video Wall Controller & KVM Over IP System zoom in
Schematic of Combining as Video Wall Controller & KVM Over IP System

Demo Video about 2K KVM over IP

Demo Video about 2K KVM over IP
