2k kvm decoder

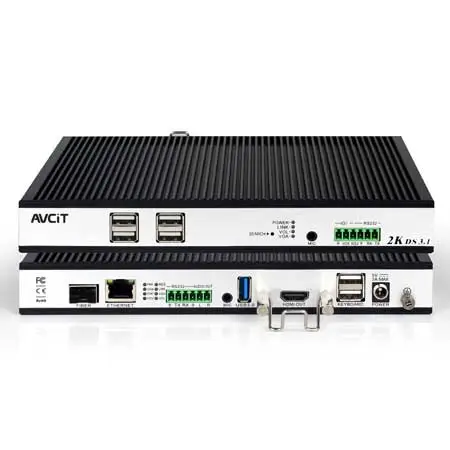

AVCiT 2K KVM Decoder - HDMI

The H. 265-based DSIII 2K KVM Decoder is designed to receive FHD video + USB-HID + RS232/485 + IR over a standard 1GB IT network, with low latency and high image quality. It would be configured as a KVM decoder to combine as an integrated and visualized Video Wall Controller & KVM over an IP System, and Operators can use Hotkey to get remote access to the PC servers.
  • Applications: Control Room, Network Operation Center (NOC), Security Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation center(JOC), Airport Operation Center (AOC), Traffic Operation Center(TOC), Board Room, Meeting Room etc.

  • Industries: Government, Public Security, Finance, Telecomm, Energy & Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise etc.


Specification of 2K KVM Decoder - (HDMI+DVI)

Video Port

HDMI OUTx1 (with patented locking kits), DVI OUTx1

USB Port

USB2.0 x2 (for Keyboard mouse,Ukey,USB disk,USB camera)

Audio Port

MICx 1

Control Port

RS232 x1, IO/IR x1

Network Port

RJ45x1, Fiber Optic x1

Resolution

Support 1920x1200 ,1920x1080i and downward compatibility

Procotol

H.265/264, RTSP, ONVIF, HDCP and HDMI 1.4B compatible with DVI 1.0

Bandwidth

4~20 Mbps configurable for per video streaming

Transmission Distance

90 meters over CAT6 cable or 10 km over fiber

Audio Control

audio matrix switching, audio mixing, embed and de-embed feature.

Power Supply

PoE (802.3 AT) or 5V 3A Power Adapter(Dual power supply)


Highlights of 2K KVM Decoder(HDMI/DVI)

Highlights of 2K KVM Decoder(HDMI/DVI)

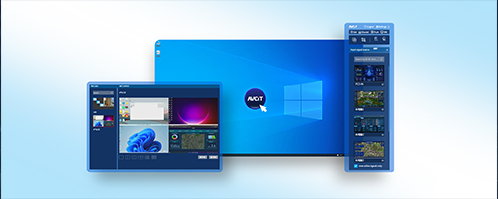

In-built OSD interface to view and control the source PC, no need additional software.


Highlights of 2K KVM Decoder(HDMI/DVI)

Compatible with both wired and wireless keyboard mouse or interative monitor with mult-touch feautre.


Highlights of 2K KVM Decoder(HDMI/DVI)

Two-way audio and USB camera transmission for making video call between operators.


Highlights of 2K KVM Decoder(HDMI/DVI)

Distributed computing technology, no need additional server to process signal.


Highlights of 2K KVM Decoder(HDMI/DVI)

Redundant power supply by both PSU and POE available.


Schematic of Combining as Video Wall Controller & KVM Over IP System

Schematic of Combining as Video Wall Controller & KVM Over IP System zoom in
Schematic of Combining as Video Wall Controller & KVM Over IP System

Demo Video about 2K KVM over IP

Demo Video about 2K KVM over IP
